Overview:

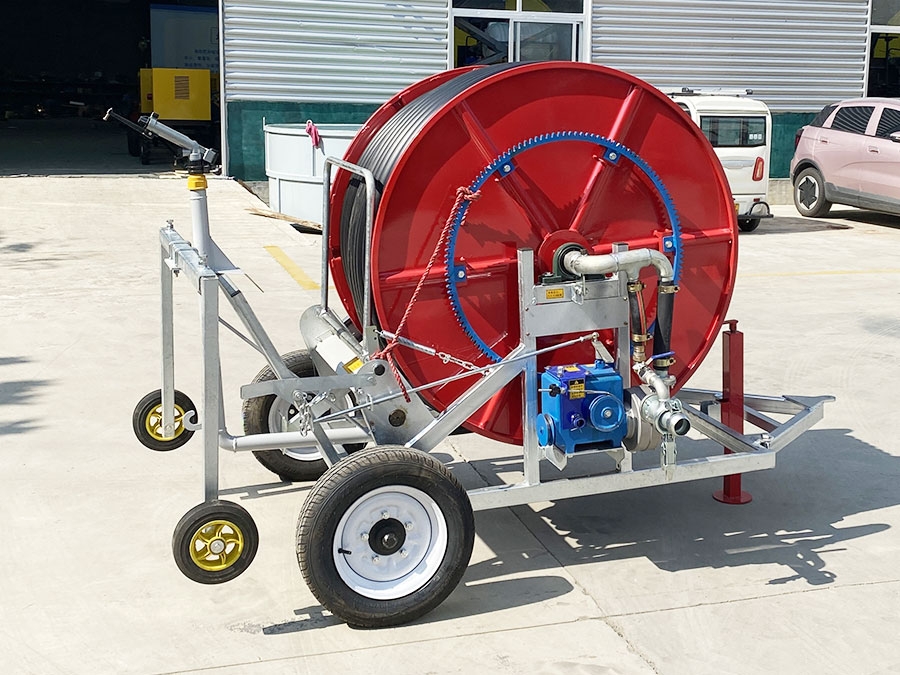

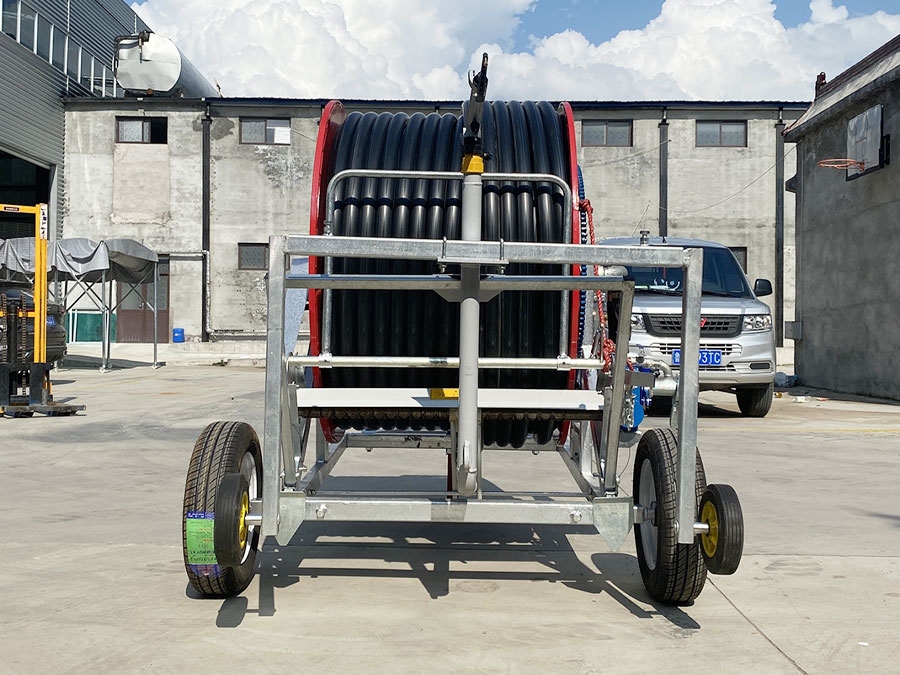

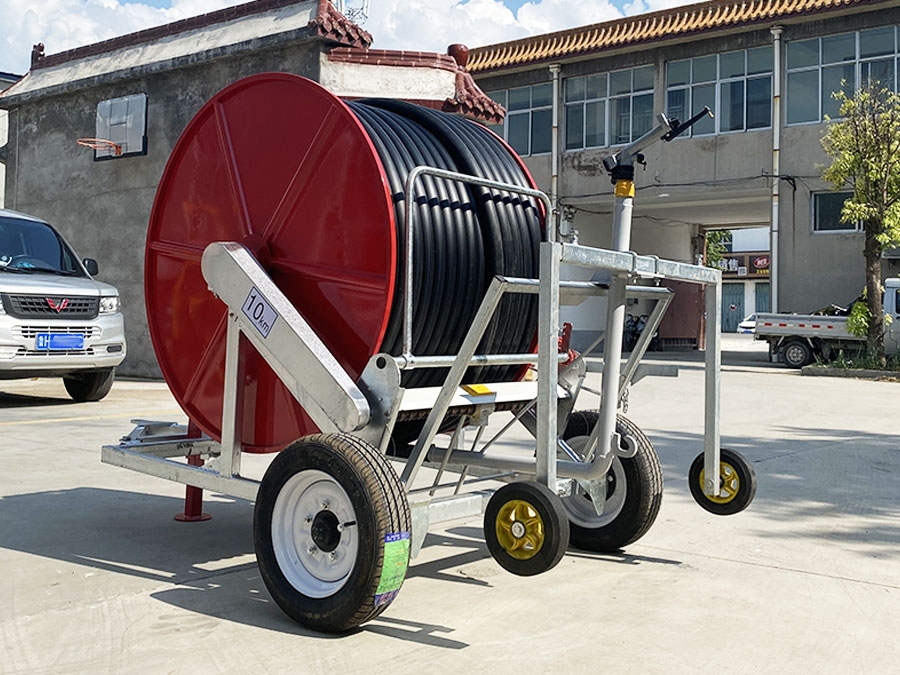

JP series reel sprinkler can not only irrigate large areas of farmland, but also control the water volume according to the size of the water demand to meet the different requirements of users for the amount of sprinkler water. It is the choice of farmland water-saving irrigation. It is also suitable for spraying operations in power plants, ports, sports fields, urban green spaces and other places where irrigation and dust prevention are required.
| JP50-200 | |||
|---|---|---|---|
| Spray range | 30m | Pipe diameter | 50mm |
| Thickness | 4.6-4.9mm | Matching deep pump head | 50-70m |
| spray-head | 10/12/14/16mm | Nozzle wheel pitch | 1.4-2.8m |
| Working pressure | 0.4-0.6MPa | Spray lance | 30 spray lance |
| Retraction speed | 10-15M/H | Overall size | 2.1*1.65*1.55m |
| Quantity of flow | 10-25M³/H | Total weight | u003c=0.35T |

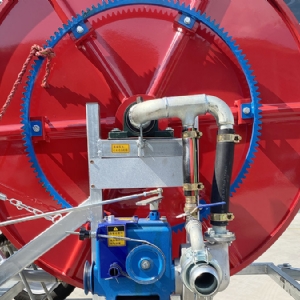

| Return pipe system | Water turbine/motor return pipe | Matched deep water pump | 5.5kw-7.5KW |
