Key Benefits:
1. Simple, elegant and beautiful appearance;
2. New steering wheel adjustment mechanism improves operating comfort and adjustment reliability;
3. High-top large-diameter intake system design can keep the engine away from dust, effectively exert engine performance and increase life;
4. Wide-view mast design makes the driver's field of vision wider;
5. Reliable LCD digital special instrument and friendly human-machine interface make it easy for the driver to accurately control the vehicle status;
6. Optional cast steering axle, low maintenance cost in the later stage.

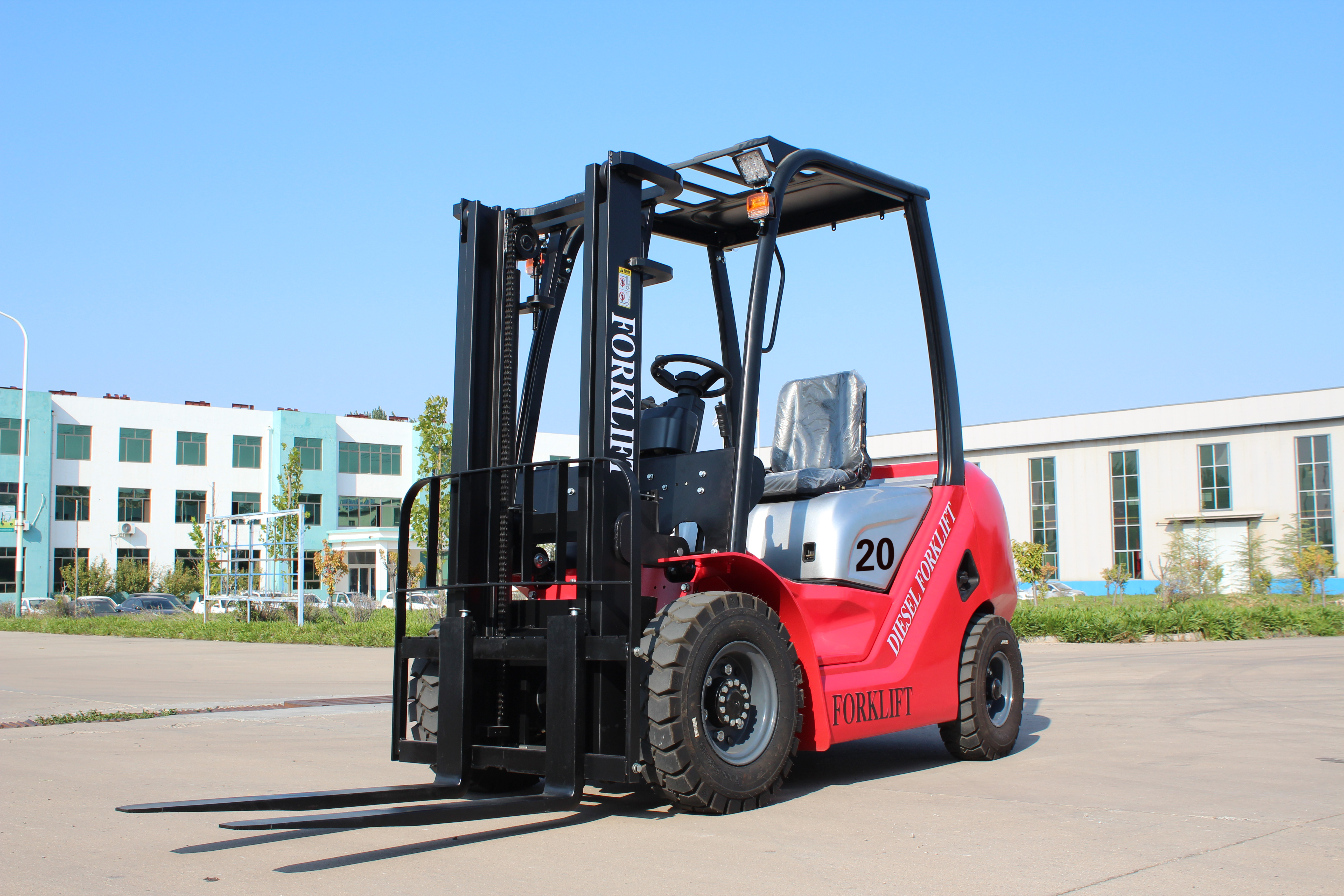

YG-20 Diesel forklift | |
---|---|
Machine weight | 3320KG |
Lifting weight | 2000KG |
Fork size | 1070*100*45 |
Load center distance | 500mm |
Machine size | 2502*1170*2070mm(without fork) |
Wheelbase | 1600mm |
Minimum ground clearance | 110mm |
Mast tilt angle (front/rear) radius | 6°/12° |
Maximum working speed | 19Km/h |
Engine model | Quanchai4C2-50V32/Quanchai4C2-50C41 |
