1. Simple, elegant and beautiful appearance;
2. The new steering wheel adjustment mechanism improves operating comfort and adjustment reliability;
3. The high-top large-diameter intake system design can keep the engine away from dust, effectively exert engine performance and extend engine life;
4. The wide-view mast design gives the driver a wider field of vision;
5. Reliable LCD digital instrument and friendly human-machine interface make it easy for the driver to accurately control the vehicle status;
6. Optional casting steering axle, low maintenance cost in the later stage.
Main parameters:

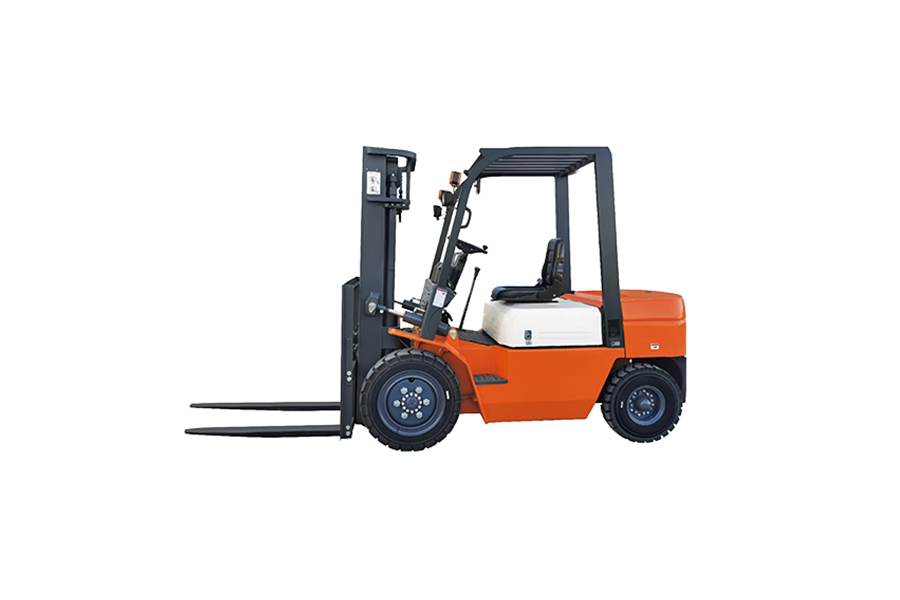

| YG-40 Diesel forklift | |
|---|---|
| Machine weight | 4950KG |
| Lifting weight | 4000KG |
| Fork size | 1070*150*50 |
| Load center distance | 500mm |
| Machine size | 2930*1290*2180mm（without fork） |
| Wheelbase | 1900mm |
| Minimum ground clearance | 140mm |
| Mast tilt angle (front/rear) radius | 6°/12° |
| Maximum working speed | 19Km/h |
| Engine model | Quanchai4C4-50V31 |
