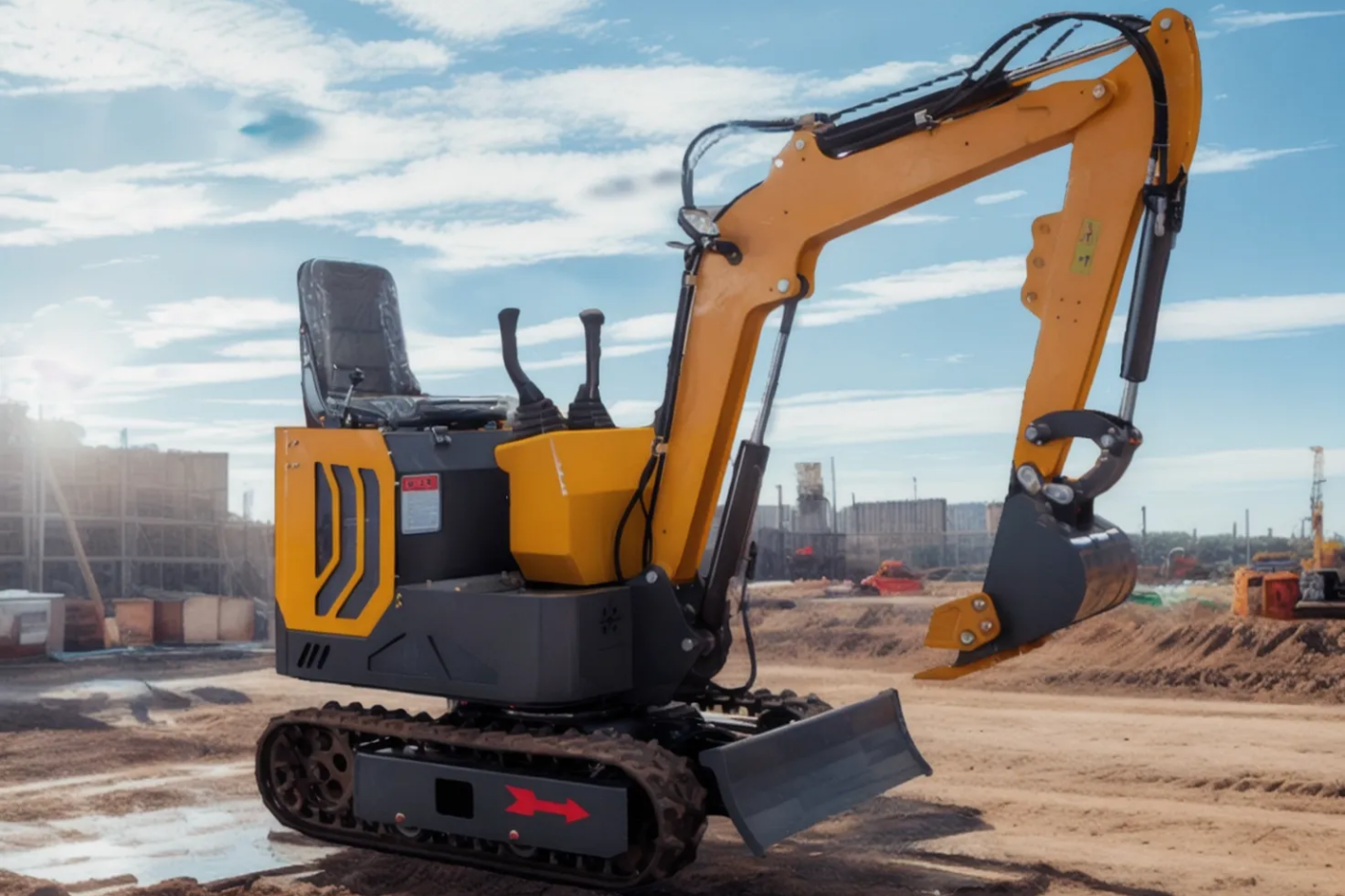

As a small-sized construction machinery, the YG-10 excavator is widely used in narrow or light-duty operation scenarios such as agriculture, gardening,and municipal
administration due to its compact size and flexible operability.
Key Features:
1. Compact design and efficient operation
The tailless slewing structure is adopted. When the fuselage rotates, the tail does not exceed the range of the crawler. It can operate freely in small spaces (such as indoors,
orchards, and greenhouses), which significantly improves safety and flexibility.
2. Operation comfort and safety
The short handle control valve reduces the risk of misoperation. The enhanced working device and X-type lower frame improve the stability of the whole machine. It is equipped
with a bulldozer to assist balance and adapt to complex terrain.
3. Economical and easy maintenance
Low fuel consumption, simple maintenance, the whole machine structure design is convenient for daily maintenance (such as enlarging the hydraulic oil tank and diesel tank),
reducing downtime, suitable for long-term high-intensity operation
4. Typical application scenarios
Agriculture and gardening: digging trenches and fertilizing in orchards, digging tree pits, and deep tilling the soil in greenhouses.
Municipal engineering: cable trench excavation, indoor demolition, road repair.
Mountain operations: terrace repair, small mine crushing, etc.
Main parameters:
| YG-10 mini excavator | |
|---|---|
| Operating Weight | 1000KG |
| Engine Power | 8.6KW |
| Engine | RATO R420 |
| Bucket Capacity | 0.025m³ |
| Maximum digging depth | 1500mm |
| Maximum digging height | 2500mm |
| Maximum dumping height | 1400mm |
| Maximum digging radius | 2000mm |
| Track length | 1200mm |
| Track width | 180mm |
| Length x width x height | 2100*910*2050mm |
