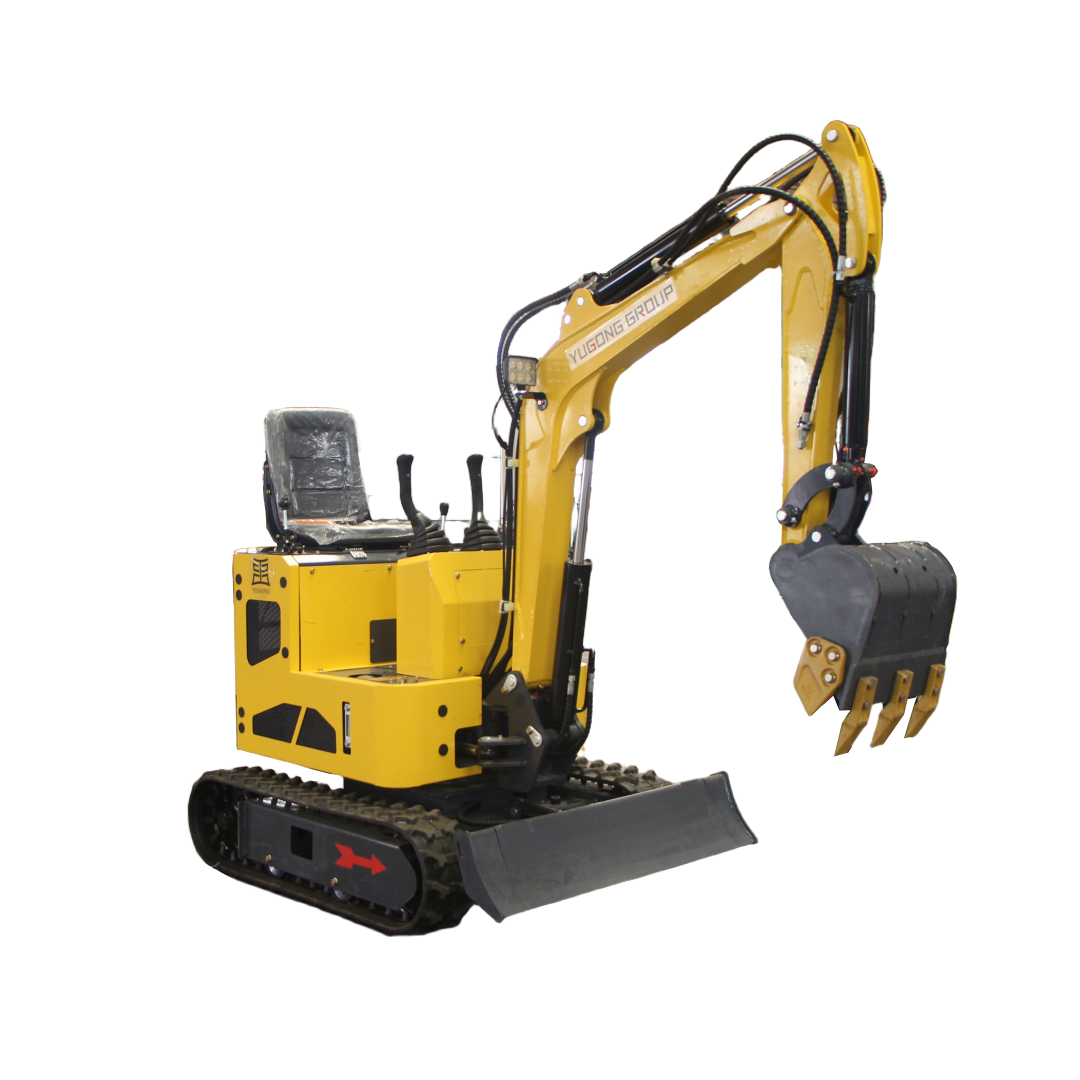

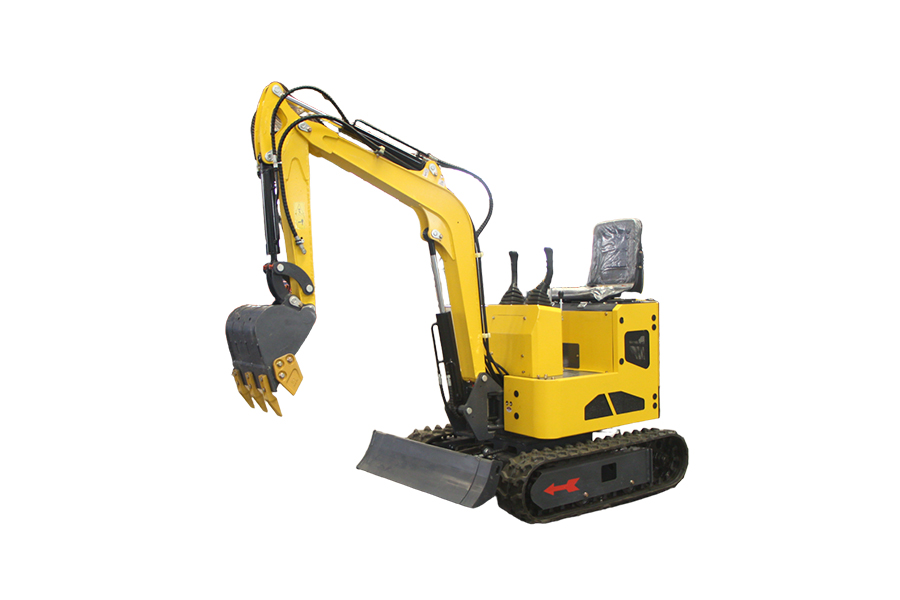

The YG-12 mini excavator is popular in a variety of operating scenarios due to its light weight, flexibility and economy.
Key Features:
1. Small size and strong flexibility
The whole machine is compact in size and suitable for narrow spaces;
it can turn on the spot or move a short distance to reduce interference with the surrounding environment.
2. Multi-function adaptability
In addition to the standard bucket, accessories (such as breaker, drill, wood grabber) can be quickly replaced to meet the needs of crushing, drilling, material handling, etc.
3. Convenient transportation and power output
No heavy trucks are required, ordinary trailers or pickup trucks can be used for transportation; the hydraulic system is optimized, taking into account both power output and energy saving.
4. Easy to operate
It adopts pilot hydraulic control or electric control, with high operating sensitivity, and is easy for novices to use.
5. Outstanding economic performance
The maintenance cost is low, the parts are highly universal and the maintenance cycle is long.
Main parameters:
| YG-12 mini excavator | |
|---|---|
| Operating Weight | 1200KG |
| Engine Power | 7.6KW |
| Engine | KOOP 192 |
| Bucket Capacity | 0.025m³ |
| Maximum digging depth | 1500mm |
| Maximum digging height | 2650mm |
| Maximum dumping height | 1500mm |
| Maximum digging radius | 2350mm |
| Track length | 1200mm |
| Track width | 180mm |
| Length x width x height | 2500*950*2150mm |
