Key Benefits:
Powerful Performance: High-performance engine provides strong power for smooth operation on rugged surfaces.
Excellent Traction: Large tires and high ground clearance ensure stable driving in muddy and uneven terrain.
Flexible Operation: Outstanding steering system allows operators to easily control the forklift, improving work efficiency.
Safe and Reliable: Equipped with advanced safety systems to protect operators and surrounding personnel.

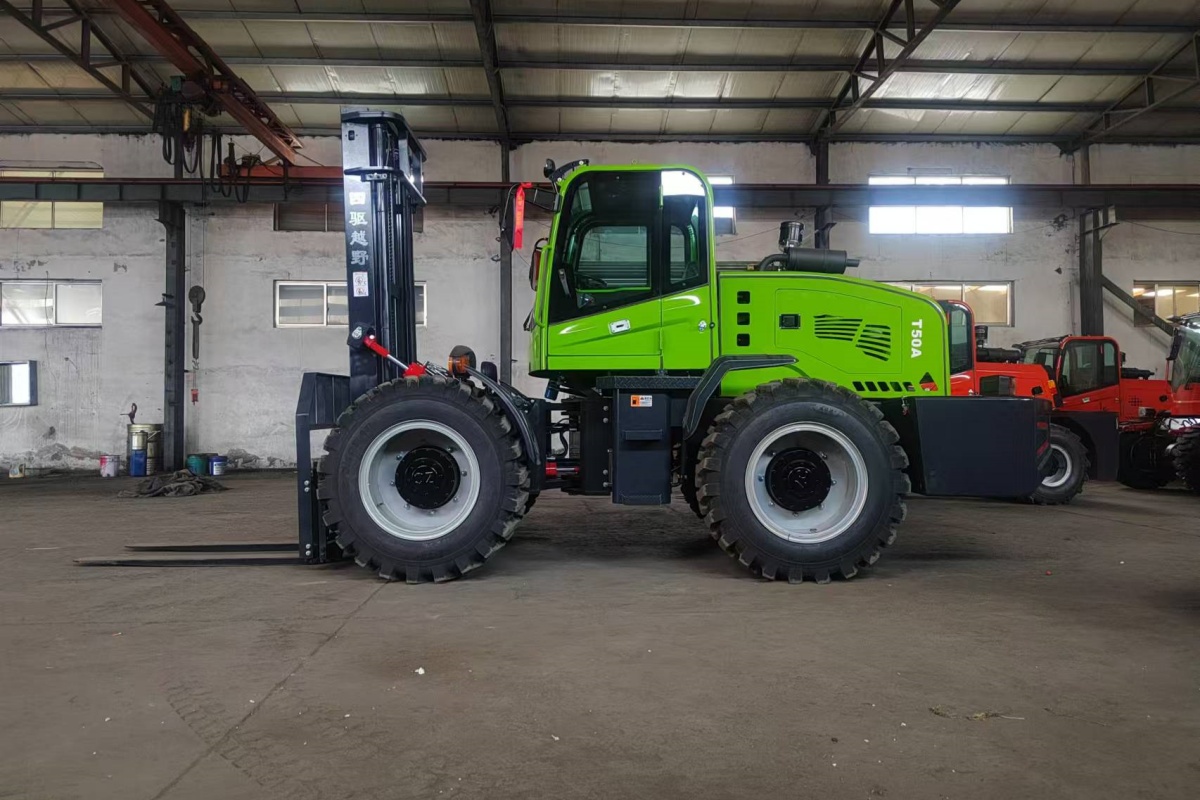

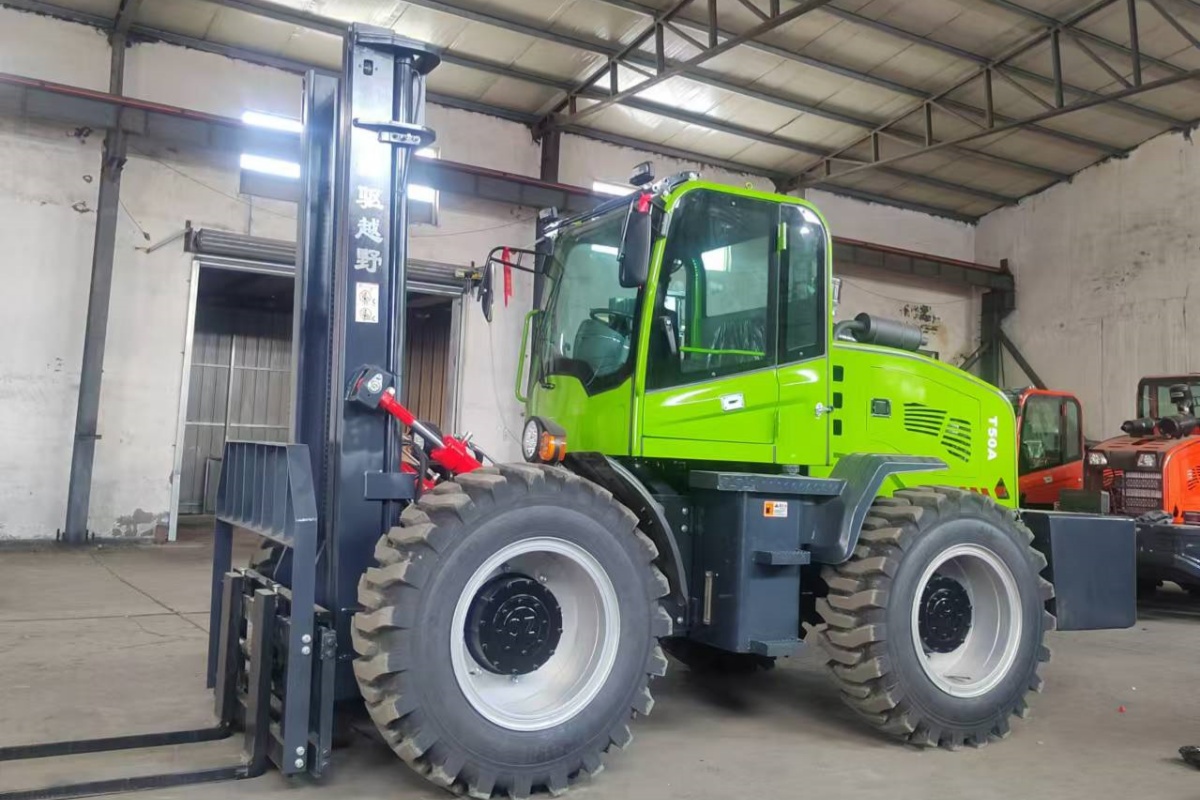

| YGC-50 Rough Terrain Forklift | |
|---|---|
| Vehicle weight | 5600KG |
| Wheelbase | 2060mm |
| Overall dimensions | 4500*2000*2600 |
| lifting height | 2 sections 4 meters (gantry height 3000mm) |
| Rated lifting weight | 5000KG |
| Engine Model | Weichai National II 4102 Supercharger (76KW) |
| Top speed | 35Km/h |
| Cab | New electrophoresis luxury grille |
| Gear | 4 forward gears, 4 reverse gears |
| Climbing angle | 45° |
| Gearbox | 280B dual high and low speed torque converter |
| Axles | Polysteel large wheel side bridge |
| Minimum ground clearance | 280mm |
| tire | 16/70-20 semi -solid high-tread tire |
| Drive mode | Four-wheel drive |
| Fork length | 1520mm |
