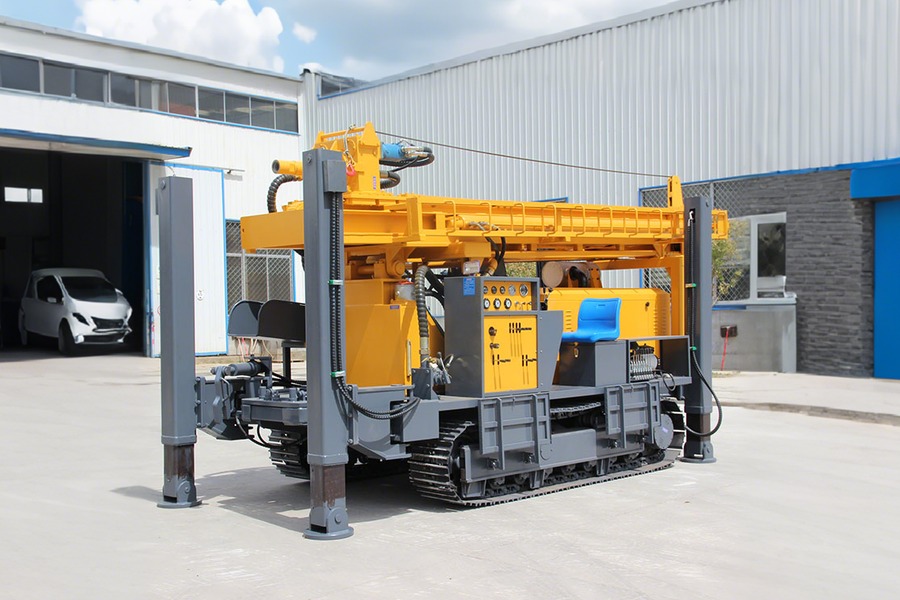

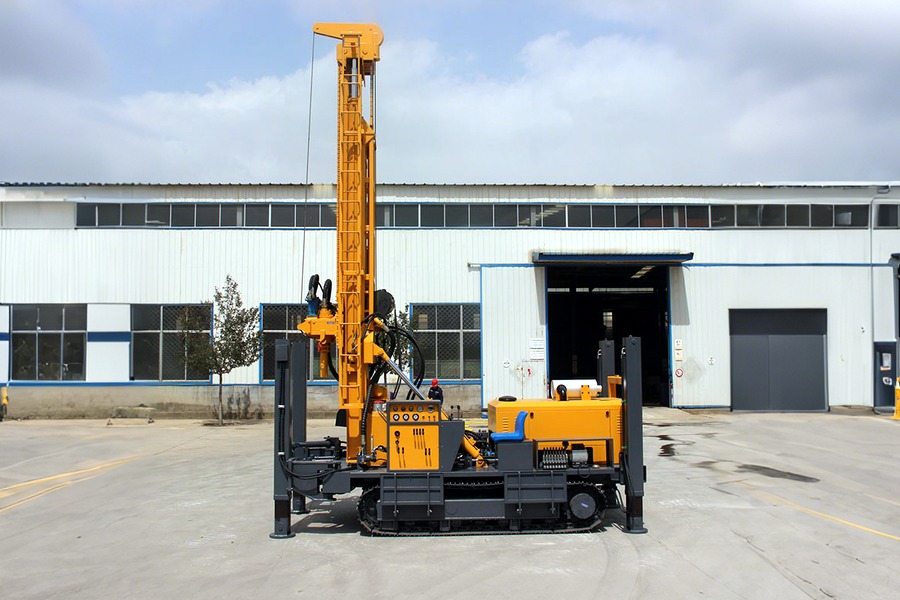

YGQZ-500 Water Well Drilling Rig Features:
1. Engine: Famous brand Guangxi Yuchai turbocharged engine or American Cummins turbocharged engine.
2. Walking Mechanism: Equipped with a new type of walking motor and reducer, providing long service life.
3. Hydraulic Oil Pump: Imported from Italy with a parallel gearbox design; the oil pump is separated, ensuring sufficient and reasonable power distribution. The advanced hydraulic system design is unique, easy to maintain, and cost-effective.
4. Power Head: The housing is integrated, with dual motors providing greater power, higher torque, and longer durability, reducing maintenance costs.
5. Drill Rig Chassis: A professional drilling rig chassis, durable and robust, with a wide track chain that minimizes damage to hard surfaces.
6. Lifting Capacity: Features a specially designed composite boom with a compact size, long stroke, and dual hydraulic cylinders for lifting. The lifting tonnage is higher, and the rig is equipped with a limit device on the boom for cylinder protection, ensuring safety during operations.
7. Hydraulic Hose Protection: Each hydraulic hose is equipped with an enhanced protective sleeve, extending the hose's lifespan.
8. Independent Cooling System: Dual hydraulic oil temperature cooling systems with traditional air-cooling, extending engine life.
9. Dual Systems: 1) Pneumatic system paired with an air compressor; 2) Mud pump system paired with a mud pump.
| YGQZ-500 Water Well Drilling Rig | |||
|---|---|---|---|
| The weight (T) | 9.5 | Drill pipe diameter (mm) | Φ102 / Φ108 / Φ114 |
| The hole diameter (mm) | 140-350 | Drill pipe length (m) | 1.5m / 2.0m / 3.0m / 6.0m |
| Drilling depth (m) | 500 | Rig lifting force (T) | 26 |
| One-time advance length (m) | 6.6 | Rapid rise speed (m/min) | 20 |
| Walking speed (km/h) | 2.5 | Fast feeding speed (m/min) | 40 |
| Climbing angles (Max.) | 30 | Width of loading (m) | 2.85 |
| Equipped capacitor (kw) | 118 | Hoisting force of winch (T) | 2 |
| Using air pressure (MPA) | 1.7-3.5 | Swing torque (N.m) | 7500-10000 |
| Air consumption (m³/min) | 17-42 | Dimension (mm) | 6150×2200×2600 |
| Swing speed (rpm) | 45-130 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency (m/h) | 15-35 | High leg stroke (m) | 1.6 |
| The engine brand | Yuchai engine | ||
