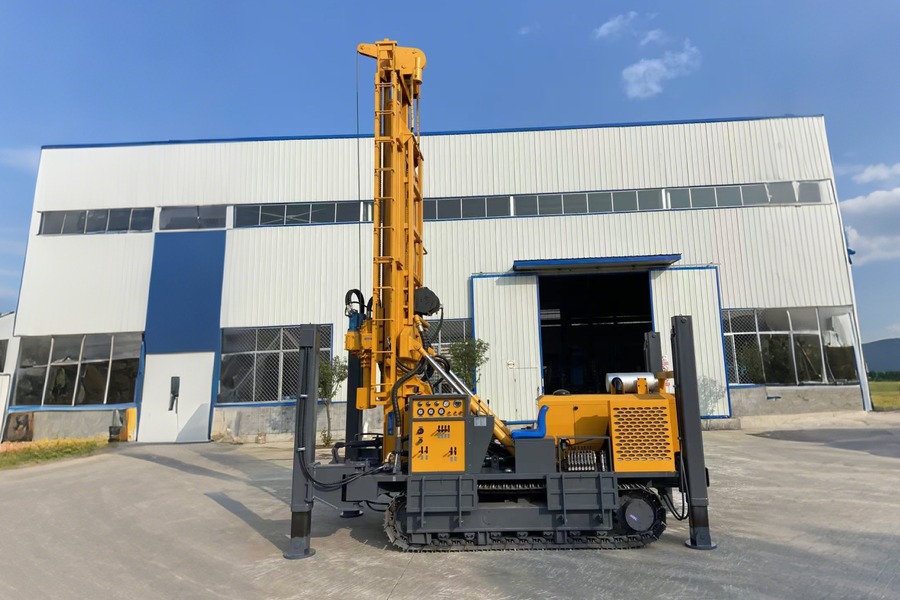

YGQZ-600 Water Well Drilling Rig Features:
1. The FY600 series water well drilling rig uses full hydraulic control, with top drive motorized rotation of the drilling tools, resulting in high drilling efficiency.
2. Equipped with a Cummins 113kw generator, providing strong power and long service life. It also features an imported Italian oil pump with a three-pump system.
3. The overall layout is reasonable, with options for tractor-type or all-terrain chassis transport, offering excellent mobility.
4. Highly flexible on difficult roads, it can be widely applied in various fields such as hydrological well resource exploration, coalbed methane, shallow shale gas, geothermal, and also used in coal mine gas extraction and retrieval work.
5. The top-mounted drive head has a large spindle diameter, suitable for mud drilling, air drilling, air foam drilling, and other operations, meeting the drilling needs of different formations.
6. The independent dual cooling system uses hydraulic oil temperature cooling, combined with traditional air cooling, ensuring long engine life.
7. Dual system: 1) Air power system paired with an air compressor; 2) Mud pump system paired with a mud pump.
| YGQZ-600 Water Well Drilling Rig | |||
|---|---|---|---|
| The weight (T) | 11.5 | Drill pipe diameter (mm) | Φ102 / Φ108 / Φ114 |
| The hole diameter (mm) | 140-350 | Drill pipe length (m) | 1.5m / 2.0m / 3.0m / 6.0m |
| Drilling depth (m) | 600 | Rig lifting force (T) | 28 |
| One-time advance length (m) | 6.6 | Rapid rise speed (m/min) | 20 |
| Walking speed (km/h) | 2.5 | Fast feeding speed (m/min) | 40 |
| Climbing angles (Max.) | 30 | Width of loading (m) | 2.85 |
| Equipped capacitor (kw) | 113 | Hoisting force of winch (T) | 2 |
| Using air pressure (MPA) | 1.7-3.5 | Swing torque (N.m) | 8500-11000 |
| Air consumption (m³/min) | 17-42 | Dimension (mm) | 6300×2200×2650 |
| Swing speed (rpm) | 45-130 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency (m/h) | 15-35 | High leg stroke (m) | 1.7 |
| The engine brand | Cummins engine | ||
