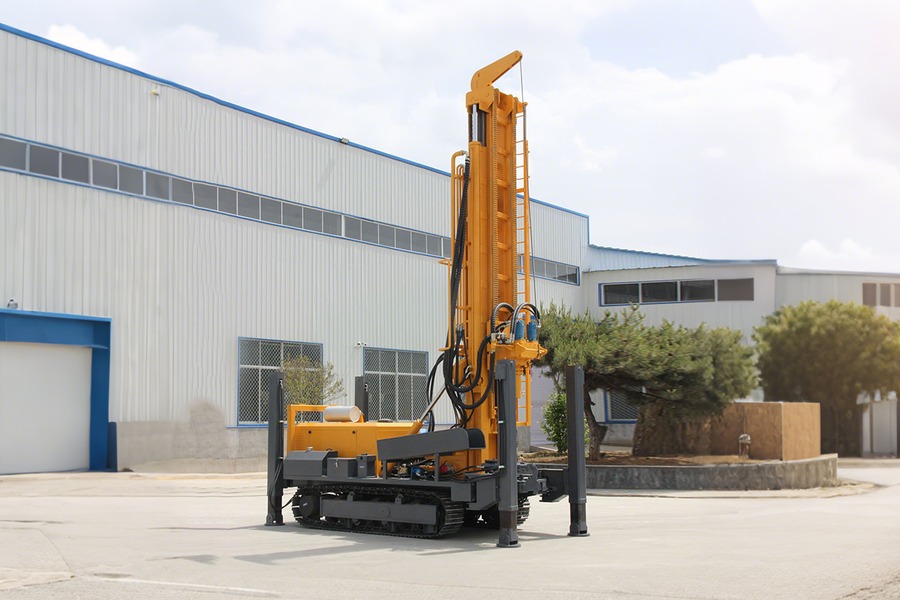

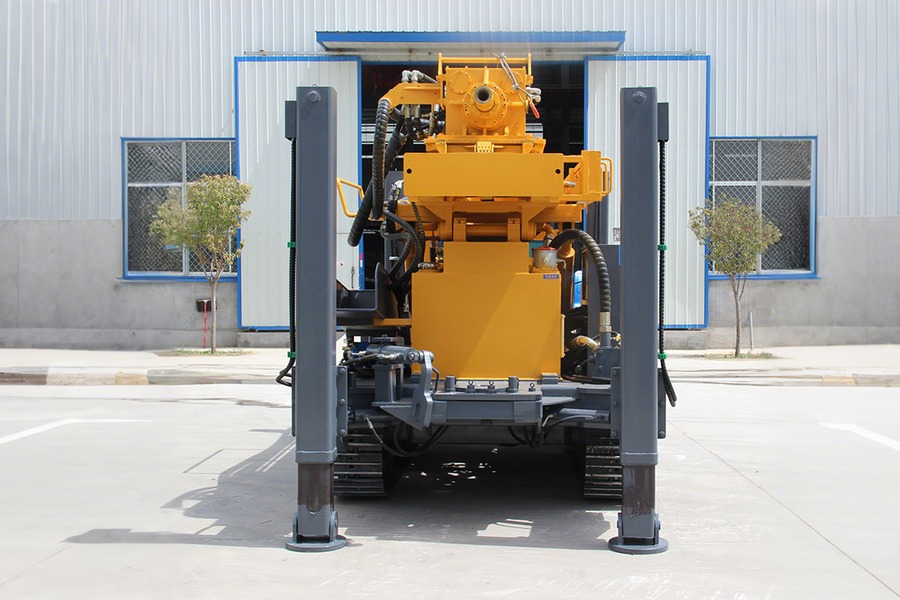

YGQZ-800 Water Well Drilling Rig Features:
1. Equipped with a 153KW Cummins 6-cylinder turbocharged engine, providing powerful performance and long service life.
2. Patented composite boom design with dual hydraulic cylinders for lifting and an enhanced mast structure.
3. Features an Italian imported 3-section oil pump, equipped with foam pump, winch, multifunctional generator, and front support leg swing cylinder.
4. Each drilling rig is equipped with a protective shield on the main arm to protect the hydraulic cylinder.
5. Large hole diameter, deep drilling depth, and fast advancement speed.
6. Drilling rig chassis: Reinforced steel tracks, large chassis, durable and heavy-duty, with wide track plates to minimize damage to hard surfaces.
7. Parallel drive design ensures adequate power, reasonable distribution, and a unique hydraulic system that is simple to maintain and cost-effective.
8. Dual independent cooling system with hydraulic oil temperature cooling and traditional air cooling, extending engine life.
9. Dual system configuration: 1) Pneumatic system with air compressor; 2) Mud pump system with mud pump.
| YGQZ-800 Water Well Drilling Rig | |||
|---|---|---|---|
| The weight (T) | 13 | Drill pipe diameter (mm) | Φ102 / Φ108 / Φ114 |
| The hole diameter (mm) | 140-400 | Drill pipe length (m) | 1.5m / 2.0m / 3.0m / 6.0m |
| Drilling depth (m) | 800 | Rig lifting force (T) | 30 |
| One-time advance length (m) | 6.6 | Rapid rise speed (m/min) | 20 |
| Walking speed (km/h) | 2.5 | Fast feeding speed (m/min) | 40 |
| Climbing angles (Max.) | 30 | Width of loading (m) | 2.95 |
| Equipped capacitor (kw) | 153 | Hoisting force of winch (T) | 2 |
| Using air pressure (MPA) | 1.7-3.5 | Swing torque (N.m) | 8850-13150 |
| Air consumption (m³/min) | 17-42 | Dimension (mm) | 6300×2300×2950 |
| Swing speed (rpm) | 45-140 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency (m/h) | 15-35 | High leg stroke (m) | 1.7 |
| The engine brand | Cummins engine | ||
