Versatile Power for Large-Scale Projects

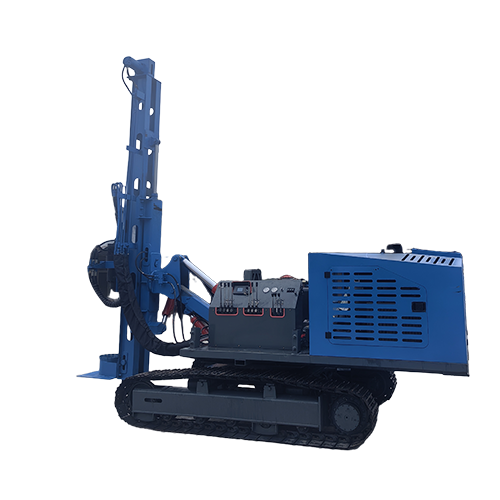

Designed for larger-scale piling tasks, the YGL-400 is built to provide higher impact force with the same hydraulic hammer options (AR75/85/100) and superior hydraulic flow rate (50-110 L/min). Its dimensions (5800x2200x2800 mm) ensure easy transportation, while the 360-degree rotating chassis and adjustable slide guide rack (left and right tilt 5º) provide precise control on uneven terrain. This model is ideal for larger foundation projects where both speed and accuracy are essential.
| Item | Value | Unit |
|---|---|---|
| Dimensions (L × W × H) | 5800 × 2200 × 2800 (Transport) | mm |
| Hydraulic Hammer Model | AR75/85/100 (Optional) | mm |
| Hydraulic Hammer Flow | 50-110 | L/min |
| Impact Frequency | 350-800 | bpm |
| Drill Rod Diameter | 75/85/100 (Optional) | mm |
| Maximum Torque of Travel Motor | 11500 | N·m |
| Maximum Pile Height | Based on slide rail | mm |
| Slide Guide Tilt Angle | Left 5, Right 5 | º |
| Rotating Angle of Chassis | 360 | º |
| Hydraulic System Pressure | 22 | Mpa |
| Gear Pump Displacement | 40+40+25 | ml/r |
| Travel Speed | 3 | KM/h |
| Gross Weight | 7232 | kg |
| Engine Power | Yuchai 4-cylinder 85KW | KW |
| Engine Rated Speed | 2600 | (r/min) |
| Track Plate Width | 350 | mm |
| Track Links | 42 | Links |
| Total Displacement of Travel Motor | 53 | ml/r |
| Rated Pressure of Travel Motor | 30 | Mpa |
| Travel Motor Reduction Ratio | 01:54.4 | |
| Pile Rod Length | 4 | m |
