YGL-500

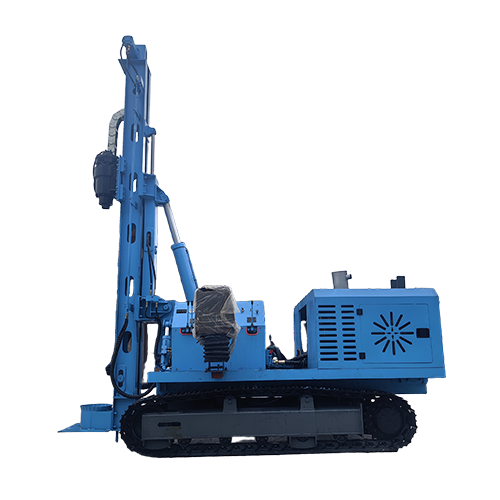

The YGL-500 Solar-Powered Pile Driver combines cutting-edge technology with efficiency, offering an eco-friendly and high-performance solution for piling operations. Designed with versatility in mind, this machine is ideal for projects ranging from solar farm installations to large-scale construction.

Key Features:

High Efficiency & Eco-friendly: Powered by solar energy, the YGL-500 offers a sustainable and cost-effective solution for your piling needs. By reducing reliance on fossil fuels, it lowers operational costs and supports environmentally conscious construction practices.

Robust Performance: With a powerful Yuchai 4-cylinder, 85kW engine, this pile driver delivers exceptional performance even in the toughest working conditions. The 360° rotation of the frame and adjustable tilt angle (left 5°, right 5°) provide maximum flexibility, ensuring precise alignment for each pile installation.

Advanced Hydraulic System: The hydraulic system pressure of 22 MPa, coupled with a gear pump displacement of 40+40+25 ml/r, enables efficient operation and consistent power delivery. The impact frequency of 350-800 bpm ensures fast and reliable pile driving for various applications, including solar panel foundations.

Customizable Options: The YGL-500 offers flexibility with selectable hydraulic hammer models (AR75/85/100) and rod diameters (75/85/100 mm), allowing customization to meet specific project requirements. The quick-change hydraulic hammer feature further enhances efficiency, enabling rapid adaptation to different tasks.

Enhanced Durability: With a max torque of 11,500 N·m and a reinforced frame, the YGL-500 is built for durability and heavy-duty performance. The strong crawler track (350 mm wide) and travel speed of 3 km/h ensure that the machine can easily navigate various terrains, whether soft soil or rocky ground.

Versatile & Reliable: Whether for solar farms, infrastructure projects, or foundation work, the YGL-500's easy-to-control hydraulic power steering (4WD) and heavy-duty components make it the ideal choice for a wide range of piling applications.

This solar-powered pile driver not only integrates sustainable energy but also combines power, precision, and versatility to offer a reliable and cost-effective solution for your construction and solar installation needs. Whether you're driving piles for solar arrays or other foundations, the YGL-500 will help you complete projects efficiently and responsibly.

This copy combines the machine’s technical details with its practical advantages, emphasizing its eco-friendly features, performance, and versatility for potential clients in construction and renewable energy sectors.
