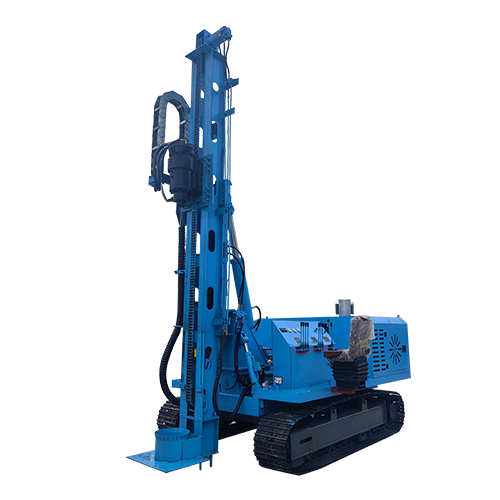

The YGL-600 Pile Driver is a robust and efficient piling machine designed for high-performance operation in demanding conditions. Equipped with advanced features and a durable construction, this model is ideal for large-scale foundation projects, including solar farm installations and heavy construction.
Key Features:
High-Efficiency Operation: Powered by the Yuchai 4-cylinder 85KW engine, the YGL-600 delivers consistent and powerful performance across a range of applications. The 360° rotation of the frame, combined with an adjustable slide guide rail tilt angle of left 5° and right 5°, ensures precise positioning and flexible piling operations.
Hydraulic Power & Flexibility: Featuring a hydraulic hammer flow of 50-110 L/min, the YGL-600 achieves an impact frequency of 350-800 bpm to drive piles efficiently. The AR75/85/100 hydraulic hammer models (optional) and customizable rod diameters (75/85/100 mm) allow flexibility to meet the specific needs of various construction projects.
Heavy-Duty Performance: With a max torque of 11,500 N·m, the YGL-600 is capable of handling challenging piling tasks. The hydraulic system pressure of 22 Mpa and gear pump displacement of 40 + 40 + 25 ml/r deliver optimal performance, ensuring long-lasting reliability and minimal downtime.
Efficient & Easy to Operate: The 3 km/h walking speed and easy-to-control hydraulic power steering (4WD) make it suitable for diverse terrains and job sites. The machine’s total weight of 6350 kg and strong crawler track (350 mm wide) ensure excellent stability and durability during operations.
Customization & Versatility: The YGL-600 is engineered for efficiency, with options for quick-change hydraulic hammer systems and the ability to adjust piling lengths to suit project needs. Whether it's for solar foundation work or construction piles, the 6-meter pile length capability adds versatility for large-scale projects.
This YGL-600 Pile Driver is built for maximum efficiency, heavy-duty performance, and ease of use, making it the perfect choice for contractors and construction professionals seeking a reliable and powerful piling solution. Whether for solar farms, infrastructure projects, or commercial construction, the YGL-600 ensures high productivity and precision every time.
| Item | Value | Unit |
|---|---|---|
| Dimensions (L×W×H) | 7800 × 2200 × 2800 | mm |
| Hydraulic Hammer Model | AR75/85/100 (optional) | mm |
| Hydraulic Hammer Flow | 50-110 | L/min |
| Impact Frequency | 350-800 | bpm |
| Rod Diameter | 75/85/100 (optional) | mm |
| Max Torque of Travel Motor | 11500 | N·m |
| Max Pile Height | According to Slide Rail | mm |
| Slide Guide Rail Tilt Angle | Left 5, Right 5 | ° |
| Frame Rotation Angle | 360 | ° |
| Hydraulic System Pressure | 22 | Mpa |
| Gear Pump Displacement | 40 + 40 + 25 | ml/r |
| Travel Speed | 3 | km/h |
| Total Weight | 6350 | kg |
| Engine Power | Yuchai 4-Cylinder 85KW | KW |
| Engine Rated Speed | 2600 | r/min |
| Track Plate Width | 350 | mm |
| Track Per Side | 42 | Links |
| Total Displacement of Travel Motor | 53 | ml/r |
| Rated Pressure of Travel Motor | 30 | Mpa |
| Reduction Ratio of Travel Motor | 01:54.4 | - |
| Pile Length | 6 | m |
